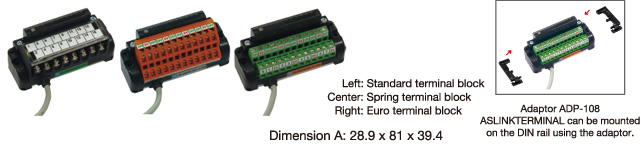

Small terminal block terminal (Cable type 3-wire type sensor compatible)
| Number of I/O points | Input/output specification | Method | Consumption current (mA) | Connection | Terminal block type | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| 8 | － | DC input | NPN | 6 | 40 | 4-wire type (insulation) | Standard terminal block | A | 90 | BL296SB-08F-V50 | Open |
| 8 | － | PNP | 6 | 40 | BL296SB-08FS-V50 | Open | |||||
| 4 | 4 | DC input/Tr output | NPN | 6 | 26 | BL296XB-08F-V50 | Open | ||||
| 4 | 4 | PNP | 6 | 26 | BL296XB-08FS-V50 | Open | |||||
| － | 8 | Tr output | NPN | 6 | 10 | BL296PB-08F-V50 | Open | ||||
| － | 8 | PNP | 6 | 10 | BL296PB-08FS-V50 | Open | |||||
| 8 | － | DC input | NPN | 6 | 40 | Spring terminal block | 85 | BL296SB-08F-3-V50 | Open | ||
| 8 | － | PNP | 6 | 40 | BL296SB-08FS-3-V50 | Open | |||||
| 4 | 4 | DC input/Tr output | NPN | 6 | 26 | BL296XB-08F-3-V50 | Open | ||||
| 4 | 4 | PNP | 6 | 26 | BL296XB-08FS-3-V50 | Open | |||||
| － | 8 | Tr output | NPN | 6 | 10 | BL296PB-08F-3-V50 | Open | ||||
| － | 8 | PNP | 6 | 10 | BL296PB-08FS-3-V50 | Open | |||||
| 8 | － | DC input | NPN | 6 | 40 | Euro terminal block | BL296SB-08F-11-V50 | Open | |||
| 8 | － | PNP | 6 | 40 | BL296SB-08FS-11-V50 | Open | |||||
| 4 | 4 | DC input/Tr output | NPN | 6 | 26 | BL296XB-08F-11-V50 | Open | ||||
| 4 | 4 | PNP | 6 | 26 | BL296XB-08FS-11-V50 | Open | |||||
| － | 8 | Tr output | NPN | 6 | 10 | BL296PB-08F-11-V50 | Open | ||||
| － | 8 | PNP | 6 | 10 | BL296PB-08FS-11-V50 | Open | |||||
| DIN rail adaptor for tting ASLINKTERMINAL small terminal block terminal (1 set included) | ADP-108 | Open | |||||||||
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BL296SB-08F-V50 | ○ | ○ | 10 |
| BL296SB-08FS-V50 | ○ | ○ | 10 |
| BL296XB-08F-V50 | ○ | ○ | 10 |
| BL296XB-08FS-V50 | ○ | ○ | 10 |
| BL296PB-08F-V50 | ○ | ○ | 10 |
| BL296PB-08FS-V50 | ○ | ○ | 10 |
| BL296SB-08F-3-V50 | ○ | ○ | 10 |
| BL296SB-08FS-3-V50 | ○ | ○ | 10 |
| BL296XB-08F-3-V50 | ○ | ○ | 10 |
| BL296XB-08FS-3-V50 | ○ | ○ | 10 |
| BL296PB-08F-3-V50 | ○ | ○ | 10 |
| BL296PB-08FS-3-V50 | ○ | ○ | 10 |
| BL296SB-08F-11-V50 | ○ | ○ | 10 |
| BL296SB-08FS-11-V50 | ○ | ○ | 10 |
| BL296XB-08F-11-V50 | ○ | ○ | 10 |
| BL296XB-08FS-11-V50 | ○ | ○ | 10 |
| BL296PB-08F-11-V50 | ○ | ○ | 10 |
| BL296PB-08FS-11-V50 | ○ | ○ | 10 |
| ADP-108 | - | ○ | - |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL296SB-08F-V50 |  |
 |
| BL296SB-08FS-V50 | |
|
| BL296XB-08F-V50 | |
|
| BL296XB-08FS-V50 | |
|
| BL296PB-08F-V50 | |
|
| BL296PB-08FS-V50 | |
|
| BL296SB-08F-3-V50 | |
|
| BL296SB-08FS-3-V50 | |
|
| BL296XB-08F-3-V50 | |
|
| BL296XB-08FS-3-V50 | |
|
| BL296PB-08F-3-V50 | |
|
| BL296PB-08FS-3-V50 | |
|
| BL296SB-08F-11-V50 | |
|
| BL296SB-08FS-11-V50 | |
|
| BL296XB-08F-11-V50 | |
|
| BL296XB-08FS-11-V50 | |
|
| BL296PB-08F-11-V50 | |
|
| BL296PB-08FS-11-V50 | |
|
| ADP-108 |  |
