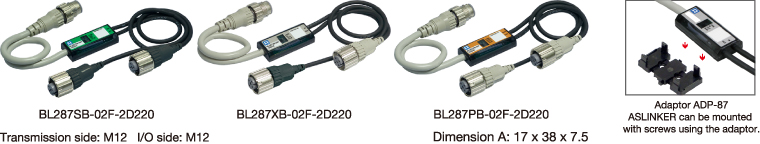

M12/M12 Cable Type (IP67)
| Number of I/O points | Input/output specification | Method | Consumption current (mA) |
Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (¥) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | |||||||
| 2 | － | DC input | NPN | 3.4 | 11.2 | 4-wire type (insulation) | A | 45 | BL287SB-02F-2D220 | Open |
| 2 | － | PNP | 3.4 | 11.2 | BL287SB-02FS-2D220 | Open | ||||
| 1 | 1 | DC input/Tr output | NPN | 3.5 | 8.0 | BL287XB-02F-2D220 | Open | |||
| 1 | 1 | PNP | 3.6 | 8.0 | BL287XB-02FS-2D220 | Open | ||||
| － | 2 | Tr output | NPN | 3.8 | 4.7 | BL287PB-02F-2D220 | Open | |||
| － | 2 | PNP | 3.8 | 4.7 | BL287PB-02FS-2D220 | Open | ||||
| ASLINKER mounting dedicated adaptor (4 adaptors included) | ADP-87 | |||||||||
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
*ASLINKER M12/M18 cable type (IP67) of 2-wire (non-insulation) can be made according to order.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BL287SB-02F-2D220 | ○ | ○ | 10 |
| BL287SB-02FS-2D220 | ○ | ○ | 10 |
| BL287XB-02F-2D220 | ○ | ○ | 10 |
| BL287XB-02FS-2D220 | ○ | ○ | 10 |
| BL287PB-02F-2D220 | ○ | ○ | 10 |
| BL287PB-02FS-2D220 | ○ | ○ | 10 |
| ADP-87 | - | ○ | - |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL287SB-02F-2D220 |  |
 |
| BL287SB-02FS-2D220 | |
|
| BL287XB-02F-2D220 | |
|
| BL287XB-02FS-2D220 | |
|
| BL287PB-02F-2D220 | |
|
| BL287PB-02FS-2D220 | |
|
| ADP-87 | |
