Product specifications	Details	Dimensions (mm)	Model	Standard price (￥)	Product Guide	CAD(Plan view)	Comformance and Compliance

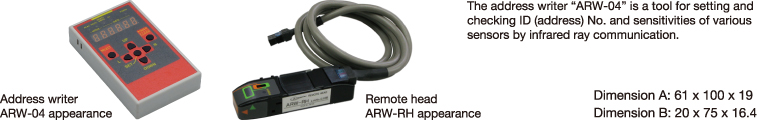

Address setting Parameter setting Teaching [Reading/writing]	Non-contact setting portable tool by infrared communication 7 segment display, driven by dry battery	A	ARW-04 ※	Open			CE, RoHS, China RoHS "10"
	Infrared remote head for setting address, parameter in narrow locations	B	ARW-RH	Open			CE, RoHS, China RoHS "e"
	Address writer ARW-04 + infrared remote head	－	ARW-04-RH	Open	The model No. is for the combination of the upper 2 models.		CE, RoHS, China RoHS "10"

"ARW-04" was developed by adding some functions to "ARW-03". Its mechanical specifications have not been changed.

* Please contact us for conformance and compliance other than UL and KC stated above.

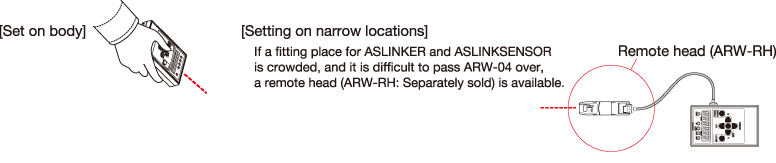

■Image of setting

■Address writer operation items

Modes which can be set by ARW-04 as follows.

Purpose	Procedure	Mode selected (function)
ARW-04 initial setting	Press POWER switch while pressing SELECT switch	Maximum point number setting mode
		Maximum parameter number setting mode
		Decimal number or hexadecimal number display setting mode
		Parameter set value automatic carry presence/absence setting mode
		Address writer mode
Teaching	Direct update	EX mode
Address reading	Direct reading	READ mode
Address writing	Power reset update	WRITE mode
	Direct update	DIRECT WRITE mode
Parameter reading	Direct reading	READ mode
Parameter writing	Power reset update	WRITE mode
	Direct update	DIRECT WRITE mode
