Analog Input Unit (With 7 segment display, non-insulation type between channels)
| Number of I/O points | Input/output specifications | Method | Type | Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| 16 | － | Multi input (switched by setting) |

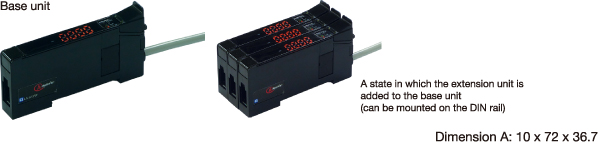

0-10V, 0-5V, 1-5V, 0-20mA, 4-20mA | Base | 10 | － | 2-wire type (non-insulation) | A | 22 | LA-A12W | Open |
| 16 | － | Extension | 10 | － | 17 | LB-A12W | Open | ||||
*The dimensions are values excluding the cable section and sensor head section.

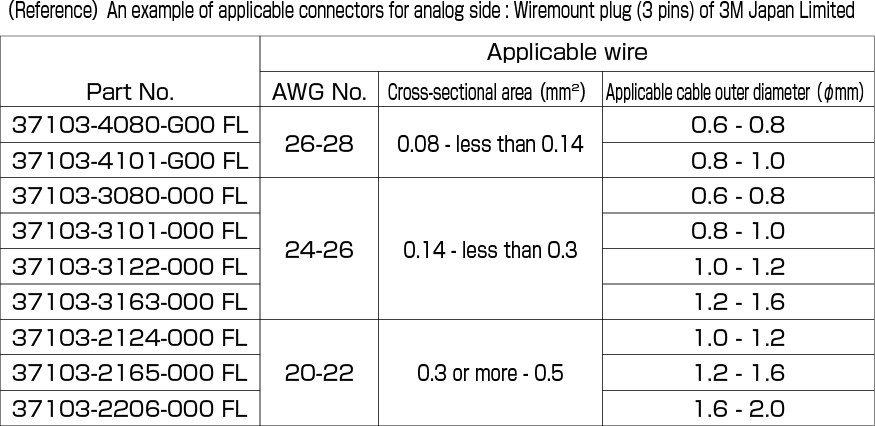

* Purchase connectors compatible with the analog side separately. (Click here for applicable connectors)
* The attached line for transmission connection is a 4-core line.
* Analog input of 1 channel for one unit is possible. (16 points are occupied.)
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| LA-A12W | - | ○ | 10 |
| LB-A12W | - | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| LA-A12W |  |
 |
| LB-A12W | |
