Analog Output Unit (With 7 segment display, insulation type between channels)
| Number of I/O points | Input/output specifications | Method | Type | Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
Input | Output | Transmission side | I/O side |
|---|---|---|---|---|---|---|---|---|---|---|---|

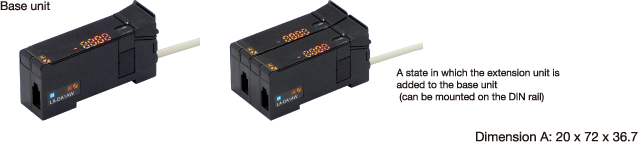

| － | 16 | Current | 0-20mA, 4-20mA | Base | 3.18 | 56.67 | 4-wire type (insulation) | A | 38 | LA-DA1AW | Open |
| － | 16 | Extension | 29 | LB-DA1AW | Open | ||||||
| － | 16 | Voltage | 0-10V, 0-5V, 1-5V | Base | 34.02 | 38 | LA-DV1AW | Open | |||
| － | 16 | Extension | 29 | LB-DV1AW | Open | ||||||
*The dimensions are values excluding the cable section and sensor head section.
* Purchase connectors compatible with the analog side separately. (Click here for applicable connectors)
* Analog output of 1 channel per unit is possible (16 points are occupied).
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| LA-DA1AW | - | ○ | 10 |
| LB-DA1AW | - | ○ | 10 |
| LA-DV1AW | - | ○ | 10 |
| LB-DV1AW | - | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| LA-DA1AW |  |
|
| LB-DA1AW | ||
| LA-DV1AW | ||
| LB-DV1AW |
