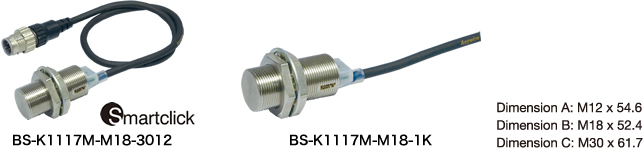

Proximity Type (Full stainless steel body type)

Number of I/O points Input/output specifications Type Detection distance
(mm)		 Consumption current (mA) Connection Dimension
(mm)		 Mass
(g)		 Model Standard price
(￥)
Input Output Transmission side I/O side
1 － Electromagnetic induction M12 0～1.6 4.7 － 2-wire type
(non-insulation)		 A 32 BS-K1117M-M12-3012 Open
1 － M18 0～3.8 4.7 － B 47 BS-K1117M-M18-3012 Open
1 － M30 0～8 4.7 － C 107 BS-K1117M-M30-3012 Open
1 － Electromagnetic induction M12 0～1.6 4.7 － 2-wire type
(non-insulation)		 A 39 BS-K1117M-M12-1K Open
1 － M18 0～3.8 4.7 － B 55 BS-K1117M-M18-1K Open
1 － M30 0～8 4.7 － C 115 BS-K1117M-M30-1K Open

*The dimensions are values excluding the cable section and sensor head section.

*Address Writer is required for writing/reading device address.

▶ Correspondence Table of AnyWireASLINK and Applicable Connectors

◆Comformance and Compliance

Model CE RoHS China RoHS
BS-K1117M-M12-3012 ○ ○ 10
BS-K1117M-M18-3012 ○ ○ 10
BS-K1117M-M30-3012 ○ ○ 10
BS-K1117M-M12-1K ○ ○ 10
BS-K1117M-M18-1K ○ ○ 10
BS-K1117M-M30-1K ○ ○ 10

* Please contact us for conformance and compliance other than UL and KC stated above.

Model Product Guide CAD(Plan view)
BS-K1117M-M12-3012 pdf dxf
BS-K1117M-M18-3012 dxf
BS-K1117M-M30-3012 dxf
BS-K1117M-M12-1K pdf dxf
BS-K1117M-M18-1K dxf
BS-K1117M-M30-1K dxf
