Proximity Type (Sputter ready type)

Number of I/O points Input/output specifications Type Detection distance
(mm)		 Consumption current (mA) Connection Dimension
(mm)		 Mass
(g)		 Model Standard price
(￥)
Input Output Transmission side I/O side
1 － Electromagnetic induction M12 0～2 8.4 ― 2-wire type
(non-insulation)		 A 31 BS-K1117S-M12-3012 Open

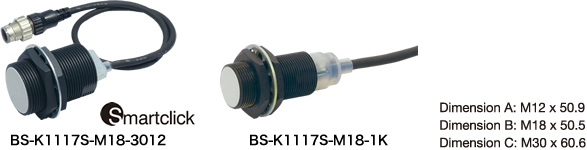

1 － M18 0～5 8 － B 44 BS-K1117S-M18-3012 Open
1 － M30 0～10 8.2 － C 107 BS-K1117S-M30-3012 Open
1 － Electromagnetic induction M12 0 ～ 2 8.4 － 2-wire type
(non-insulation)		 A 41 BS-K1117S-M12-1K Open
1 － M18 0 ～ 5 8 － B 54 BS-K1117S-M18-1K Open
1 － M30 0 ～ 10 8.2 － C 117 BS-K1117S-M30-1K Open

*The dimensions are numerical values excluding the cable section.

*Address Writer is required for writing/reading device address.

▶ Correspondence Table of AnyWireASLINK and Applicable Connectors

◆Comformance and Compliance

Model CE RoHS China RoHS
BS-K1117S-M12-3012 - ○ 10
BS-K1117S-M18-3012 - ○ 10
BS-K1117S-M30-3012 - ○ 10
BS-K1117S-M12-1K - ○ 10
BS-K1117S-M18-1K - ○ 10
BS-K1117S-M30-1K - ○ 10

* Please contact us for conformance and compliance other than UL and KC stated above.

Model Product Guide CAD(Plan view)
BS-K1117S-M12-3012 pdf dxf
BS-K1117S-M18-3012 dxf
BS-K1117S-M30-3012 dxf
BS-K1117S-M12-1K pdf dxf
BS-K1117S-M18-1K dxf
BS-K1117S-M30-1K dxf
