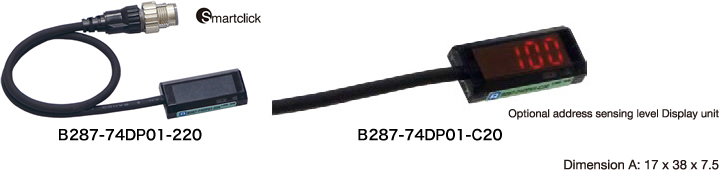

Small Display Unit
| Number of I/O points | Input/output specifications | Method | Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | |||||||
| ー | ー | ー | ー | 6 | ー | 2-wire type (non-insulation) |
A | 21 | B287-74DP01-220 | Open |
| ー | ー | ー | ー | 6 | ー | 2-wire type (non-insulation) |
A | 10 | B287-74DP01-C20 | Open |
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| B287-74DP01-220 | ○ | ○ | 10 |
| B287-74DP01-C20 | ○ | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| B287-74DP01-220 |  |
|
| B287-74DP01-C20 |  |
