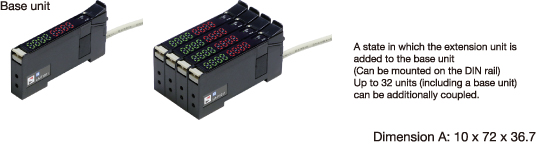

Fiber Type (With 7 segment display)

Number of I/O points Input/output specifications Type Consumption current (mA) Connection Dimension
(mm)		 Mass
(g)		 Model Standard price
(￥)
Input Output Transmission side I/O side
1 － Fiber head
(red light)		 Base 1.9 25 4-wire type (insulation) A 21 LA-F1011 Open
1 － Fiber head
(red light)		 Extension 1.9 25 17 LB-F1011 Open

*The dimensions are values excluding the cable section and sensor head section.

*Do not use a head which uses a ber in which the number of cores is 217 or more.

*Address Writer is required for writing/reading device address.

▶ Correspondence Table of AnyWireASLINK and Applicable Connectors

◆Fiber head

Fiber head

Detection method View direction Type Bending radius Cable diameter
(mm)		 Detection distance
(mm)		 Model Standard price
(￥)
With diagnosis No diagnosis
Transmission type Top view Screw type M4 R30 Φ2.2 410 600 AFT-4 4,000
Screw type M3 R20 Φ1.0 160 210 AFT-1 4,000
Screw type M3 R25 300 420 AFT-2 4,000
Screw type M3
(Heat resistance 100ºC)		 R20 170 240 AFT-1-1 7,800

*With diagnosis: When sensing level monitoring function (0-100 mode) is used / Without diagnosis: When using only with ON/OFF

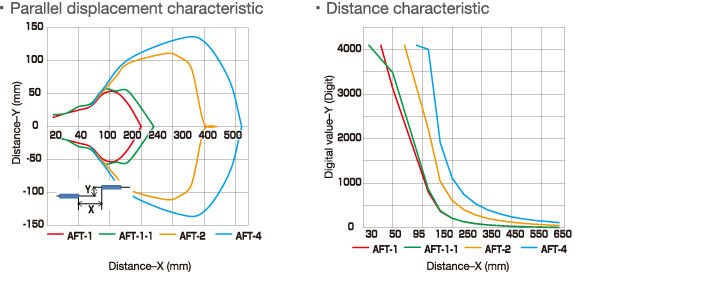

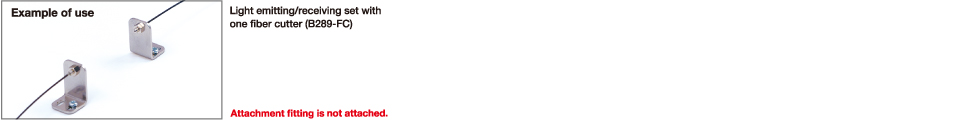

*Light emitting and receiving set, respectively free cut. *Mounting bracket not included.

*Contact our sales division for corresponding heads other than the above.

◆Comformance and Compliance

Model CE RoHS China RoHS
LA-F1011 ○ ○ 10
LB-F1011 ○ ○ 10
AFT-4 - ○ 10
AFT-1 - ○ 10
AFT-2 - ○ 10
AFT-1-1 - ○ 10

* Please contact us for conformance and compliance other than UL and KC stated above.

Model Product Guide CAD(Plan view)
LA-F1011 pdf dxf
LB-F1011 dxf

◆Fiber head

Model Product Guide CAD(Plan view)
AFT-4 Refer to Product guide of ASLINKAMP Fiber type(red light). dxf
AFT-1 dxf
AFT-2 dxf
AFT-1-1 dxf
