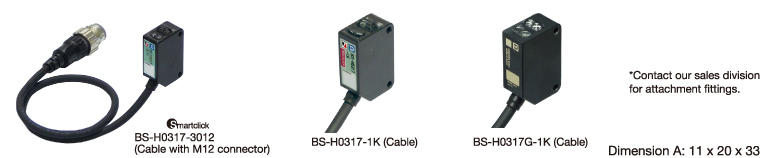

Photoelectric Spread Reflection Type
| Number of I/O points | Input/output specifications | Type | Detection distance (mm) |
Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| 1 | － | Spread reflection (red light) |
IP67 | 500 | 10 | － | 2-wire type (non-insulation) | A | 22 | BS-H0317-3012 | Open |
| 1 | － | Spread reflection (red light) |
IP67 | 500 | 10 | － | 2-wire type (non-insulation) | A | 33 | BS-H0317-1K | Open |
| 1 | － | Spread reflection (red light) |
IP67 company standard oil resistance |
500 | 10 | － | 2-wire type (non-insulation) | A | 33 | BS-H0317G-1K | Open |
*

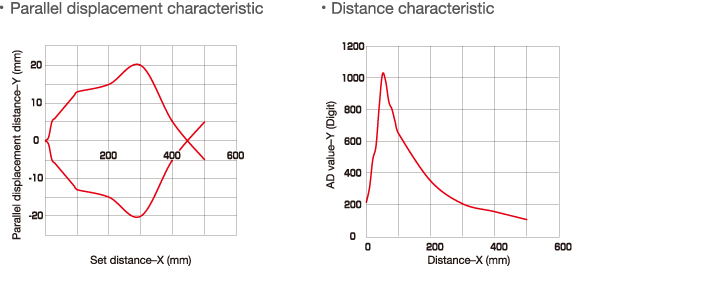

is a registered trademark of OMRON Corporation.
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
Oil resistance has been confirmed by using oil/cutting oil specified by us*. The device is resistant to oil but there is no guarantee that breakdown will not occur. Do not use the device when it is constantly exposed to oil splashing or under oil jet flow.
* Cutting oil specified by us: Water-insoluble (YUSHIRON CUT KM557, KZ313S), Water-soluble (YUSHIROKEN EC50, AP-EX-E7, FGS700)Immersion at an ambient temperature of 55°C
* Lubricating oil specified by us: (VELOCITY OIL No.3)Immersion at an ambient temperature of 55°C
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BS-H0317-3012 | ○ | ○ | 10 |
| BS-H0317-1K | ○ | ○ | 10 |
| BS-H0317G-1K | ○ | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
◆Photoelectric Spread Reflection Type
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BS-H0317-3012 |  |
|
| BS-H0317-1K | |
 |
◆Photoelectric Spread Reflection Type (IP67, IP67 company standard oil resistance)
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BS-H0317G-1K | |
|
