Terminator

◆Terminator (Waveform shaping module)

Product specifications Dimensions (mm) Model Standard price
(¥)
Product Guide CAD(Plan view) Comformance and Compliance

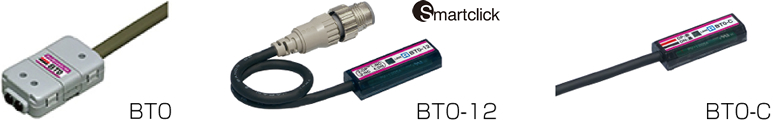

Transmission waveform shaping module (with polarity) cable connection (mounting adaptor is included) 44×24.5×12 BT0 Open pdf dxf CE, RoHS, China RoHS "10"
Transmission waveform shaping module (with polarity) M12 connector connection (IP67) 14x38x7.5 BT0-12 Open pdf dxf
Transmission waveform shaping module (with polarity) cable connection (IP67) 14x38x7.5 BT0-C Open dxf
BTO-12 and BTO-C mounting dedicated adaptor (4 adaptors included) ADP-81 Open dxf RoHS

*The dimensions are numerical values excluding the cable section.

* Please contact us for conformance and compliance other than UL and KC stated above.
