Product information
Master Units
◆PLC Interface
| Product speci fications |
Support I/O points | Consumption current (mA) |
Dimensions （mm） |
Transmission method |
Model | Standard price(￥) |
User's manual |
|
|---|---|---|---|---|---|---|---|---|
| Input | Output | |||||||

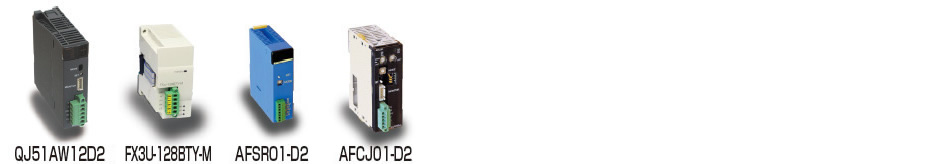

| I/F for Mitsubishi Electric MELSEC Q series | 512 | 512 | 500 | 98x27.4x90 | DB A20 | QJ51AW12D2 | Sold by Mitsubishi Electric |
|
| I/F for Mitsubishi Electric MELSEC F series | 128 （Note1） |
128 （Note1） |
100 | 90x43x87 | Bitty | FX3U-128BTY-M | Discontinued | |
| Master I/F for Yokogawa Electric FA-M3 series | 512 | 512 | 500 | 100x29x92.7 | DB A20 | AFSR01-D2 | Open | |
| Master I/F for OMRON CJ1 series | 512 | 512 | 500 | 65x31x90 | DB A20 | AFCJ01-D2 | Open | |
Note 1: Number of input points + number of output points ≦ 128 (if number of input points + number of output points ≧ 128, number of input points is prioritized.)
*Consumption current is external supply part only. For details, refer to the operation manual.
◆PC Interface
| Product speci fications |
Support I/O points | Consumption current (mA) |
Dimensions （mm） |
Transmission method |
Model | Standard price(￥) |
User's manual |
|
|---|---|---|---|---|---|---|---|---|
| Input | Output | |||||||

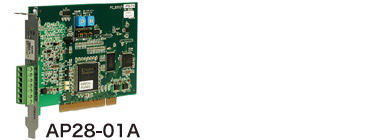

| Master I/F for PCI bus | 512 | 512 | 500 | 150x106.7x21.5 | DB A20 | AP28-01A | Open | |
*Consumption current is external supply part only. For details, refer to the operation manual.
◆Open FieldBus Gateway
| Product speci fications |
Support I/O points | Consumption current (mA) |
Dimensions （mm） |
Transmission method |
Model | Standard price(￥) |
User's manual |
|
|---|---|---|---|---|---|---|---|---|
| Input | Output | |||||||

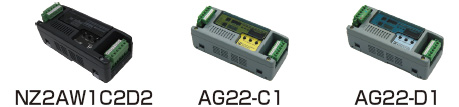

| CC-Link－AnyWire DB A20 Bridge unit for CC-Link ver 2.00  |
512 | 512 | 400 | 140x57x54.5 | DB A20 | NZ2AW1C2D2 | Sold by Mitsubishi Electric |
|
| Gateway for CC-Link ver 1.10 |
256 | 256 | 400 | 140x57x54.5 | DB A20 | AG22-C1 | Open | |
Gateway for DeviceNet |
512 | 512 | 400 | 140x57x54.5 | DB A20 | AG22-D1 | Open | |
◆Bit dispersion I/O terminal Open Terminal
| Product speci fications |
Connection speci fications |
Support I/O points | Consumption current |
Dimensions （mm） |
Transmission method |
Model | Standard price(￥) |
User's manual |
|
|---|---|---|---|---|---|---|---|---|---|
| Input | Output | ||||||||

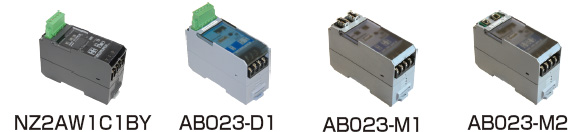

| CC-Link－AnyWire Bitty Bridge unit for CC-Link ver 1.10 |
Remote device station (1 to 4 stations are selectable) |
256 (When 4 stations are occupied) |
256 (When 4 stations are occupied) |
Approx. 200mA (When 128 terminals are connected) (Not including load current) |
40x100x66 (Excluding connector part) |
Bitty | NZ2AW1C1BY | Discontinued | |
| Bit dispersion I/O terminal for DeviceNet |
Group 2 only server |
256 | 256 | Approx. 200mA (When 128 terminals are connected) (Not including load current) |
40x100x66 (Excluding connector part) |
Bitty | AB023-D1 | Discontinued | |
| Bit dispersion I/O terminal for MECHATROLINK-I/II  |
Intelligent I/O | 216 | 216 | Approx. 200mA (When 128 terminals are connected) (Not including load current) |
40x100x73 | Bitty | AB023-M1 | Discontinued | |
| Bit dispersion I/O terminal for MECHATROLINK-III |
Intelligent I/O | 256 | 256 | Approx. 200mA (When 128 terminals are connected) (Not including load current) |
40x100x66 | Bitty | AB023-M2 | Discontinued | |
*Products marked with ▲ are made-to-order.
